3. Weld Force Gauge, and Checker

Spot welders machine and parts.

We are supplying Weld Force Gauge and Checker from “Spotron” and “Amada Miyachi” (Product from Japan) Also providing calibration, checking, repair, and certificate from maker of products.

Spotron #

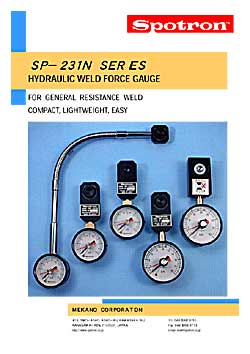

SP-231N SERIES #

HYDRAULIC WELD FORCE GAUGE

alt text

[ SP-231N SERIES Specification ]

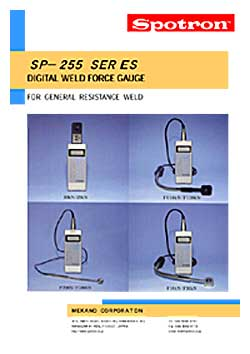

SP-255 SERIES #

DIGITAL WELD FORCE GAUGE

alt text

[ SP-255 SERIES Specification ]

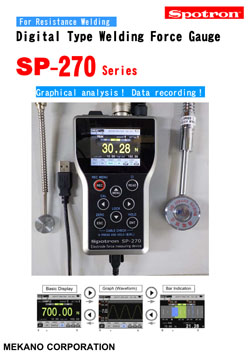

SP-270 SERIES #

DIGITAL WELD FORCE GAUGE

alt text

[ SP-270 SERIES Specification ]


SP-3510 #

Welding Current Volt Meter

alt text

[ SP-3510 Specification ]

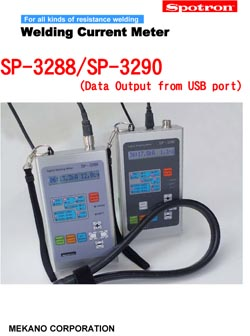

SP-3288/SP-3290 #

WELDING METER (COMPACT&ECONOMY)

alt text

[ SP-3510 Specification ]


AMS-115/AMS-116 #

WELDING MONITOR

alt text

[ AMS-115/AMS-116 Specification ]

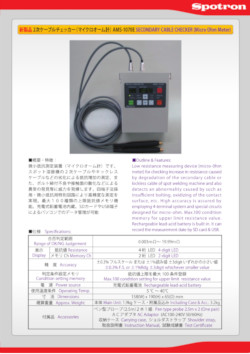

AMS-1070E #

SECONDARY CABLE CHECKER

alt text

[ AMS-1070E Specification ]


Amada Miyachi #

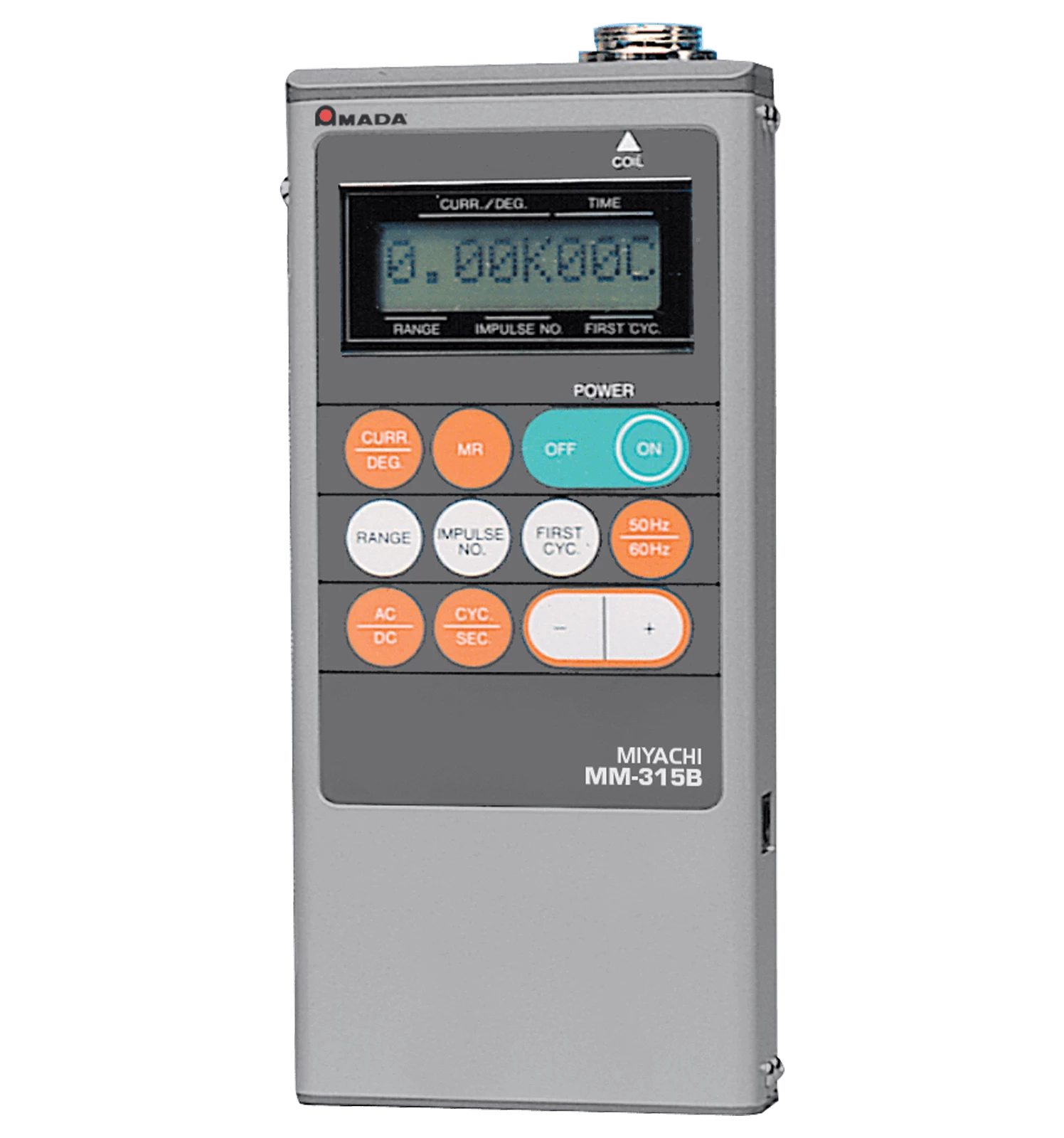

MM-315B #

Handheld Resistance Weld Checker

alt text

  • Measures Weld Current, Weld Cycles, and Conduction Degrees
  • Battery-free Memory
  • Automation Power-Off System
  • Up to 9 Impulse Memory Capacity
  • Large, Easy-to-see Liquid Crystal Display
  • Oil & Dust Proof Case

The Miyachi MM-315 is a portable, multi-function weld checker for resistance spot welders. It is one-sixth (1/6) the size and one-third (1/3) the weight of our conventional weld checkers – perfect for troubleshooting all types of resistance spot welders. It literally puts all the welding data in the palm of your hand!

[ MM-315B Specification ]

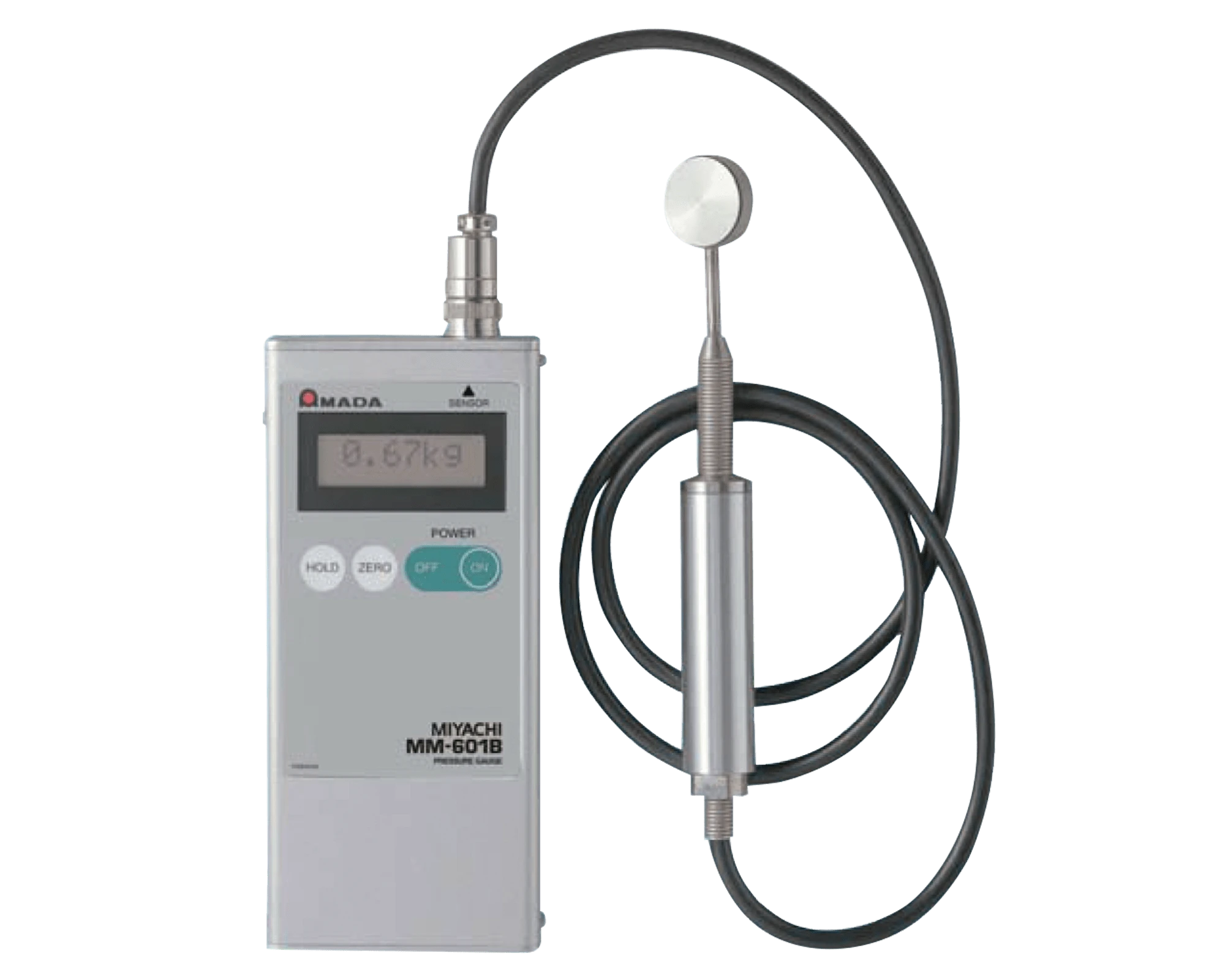

MM-601B #

Electronic Force Gauge

alt text

Replaces MM-601A

  • Simple and accurate handheld force measurement
  • HOLD and ZERO functions
  • One touch tare setting (ZERO)
  • Rechargeable batteries or AC
  • External I/O for analog output and measurement hold
  • Easy-view LCD
  • Analog force output

MM-601B is a portable electronic force gauge designed to be carried around a production site to set and verify force for resistance spot welders

[ MM-601B Specification ]
